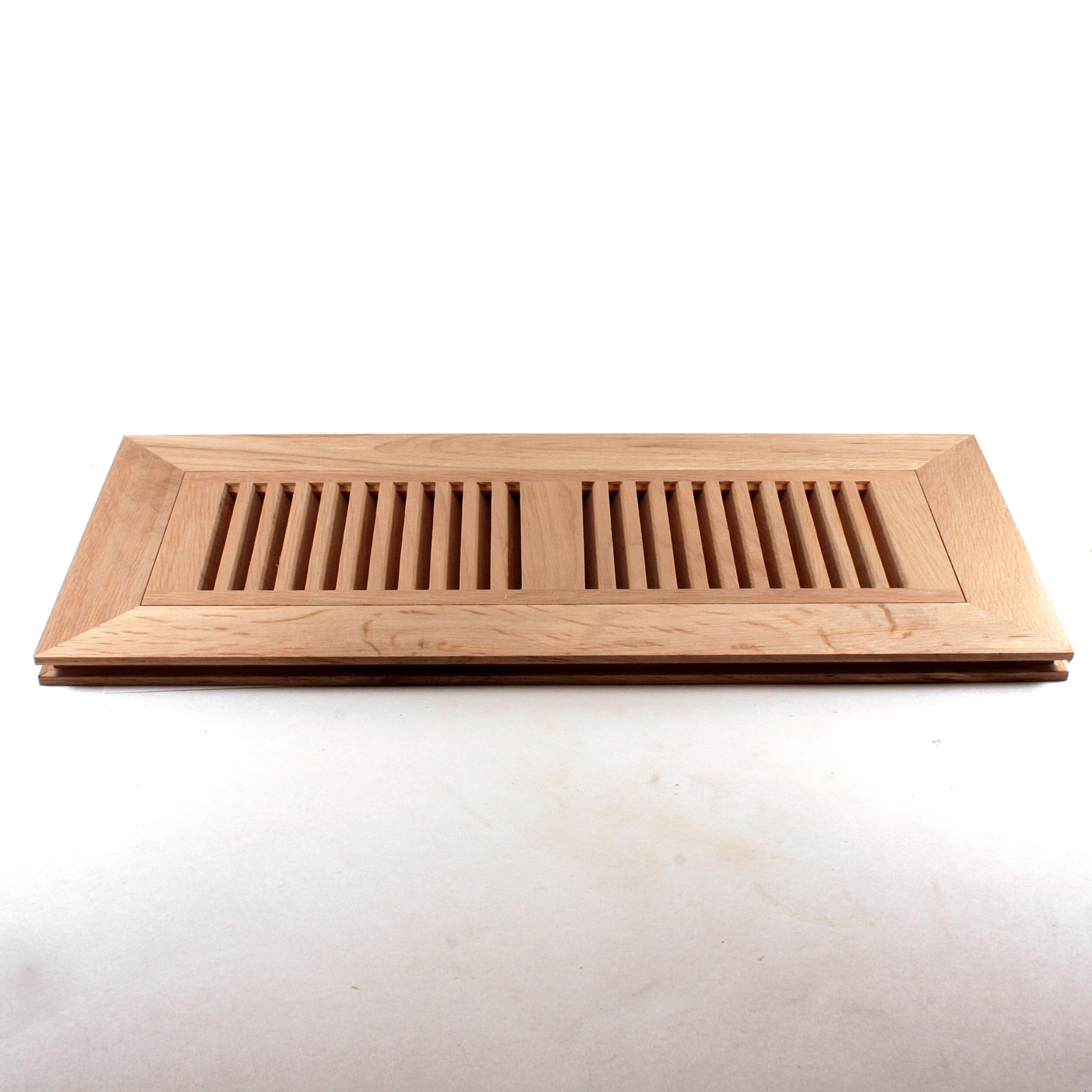

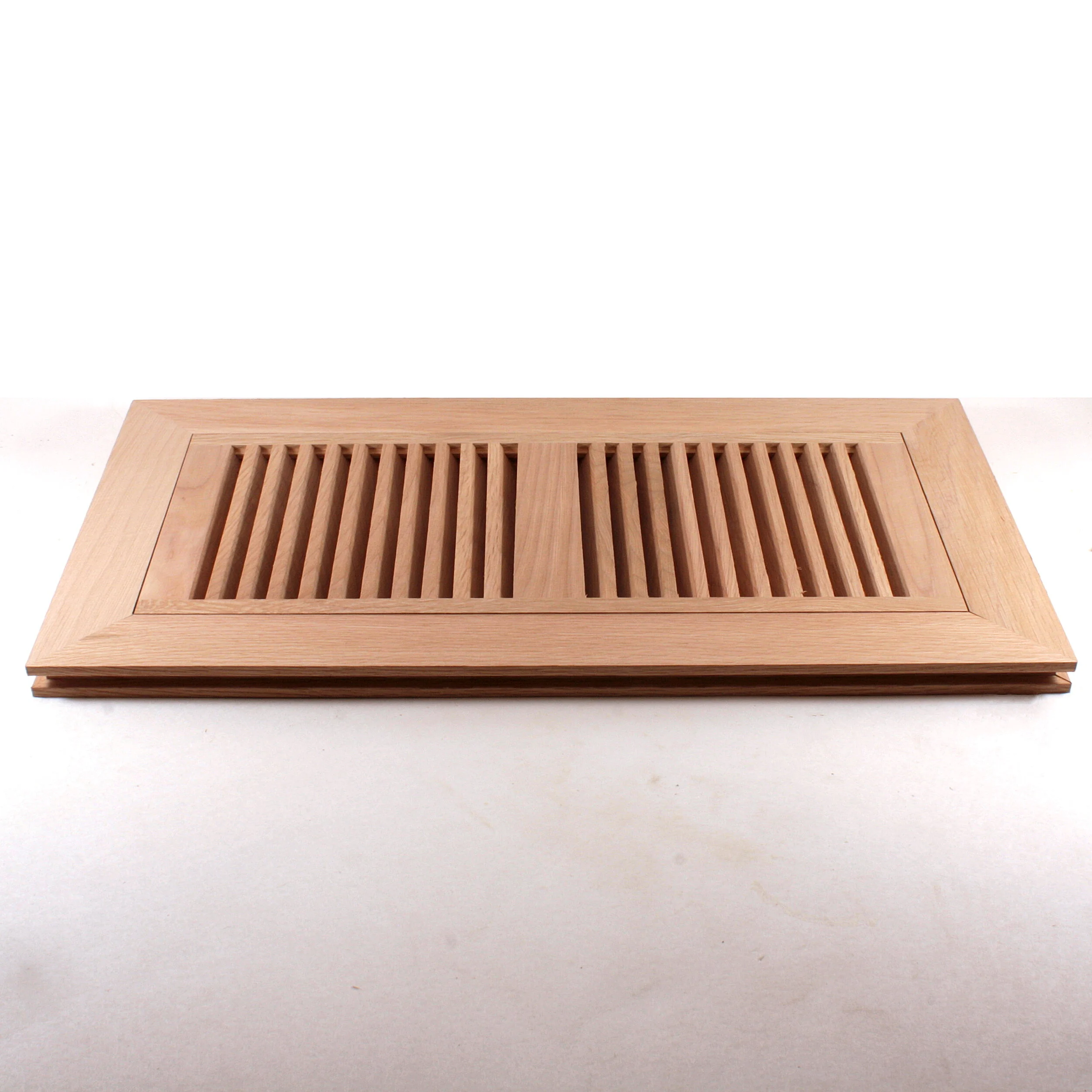

Flush Mount Supply Vent and Frame
Flush mount vents blend seamlessly with your hardwood floors. Each vent is 3/4” thick and has a removable insert set into a mitered 1.75” frame. Intended to be installed and finished along with flooring installation.
Duct Size:
Quantity:
To order, select the size of the duct opening. See the sizing chart (below) for vent dimensions.
All vents come unfinished so you can pick the finish that works for you.
Pictures are examples only. The vent you receive will have unique grain patterns.
Sizing Chart
| Duct Size | Size of Insert | Outside Dimensions of Frame |
| 4 x 10 | 5 ½ x 12 ¼" | 9 x 15 ¾" |
| 4 x 12 | 5 ½ x 14 ½" | 9 x 18" |
| 4 x 14 | 5 ½ x 16 ¾" | 9 x 20 ¼" |
| 4 x 16 | 5 ½ x 19" | 9 x 22 ½" |
| 6 x 10 | 7 ½ x 12 ¼" | 11 x 15 ¾" |
| 6 x 12 | 7 ½ x 14 ½" | 11 x 18" |
| 6 x 14 | 7 ½ x 16 ¾" | 11 x 20 ¼" |
| 6 x 16 | 7 ½ x 19" | 11 x 22 ½" |
| 2 x 10 | 3 ½ x 12 ¼" | 7 x 15 ¾" |
| 2 x 12 | 3 ½ x 14 ½" | 7 x 18" |
| 2 x 14 | 3 ½ x 16 ¾" | 7 x 20 ¼" |
| 2 x 16 | 3 ½ x 19" | 7 x 22 ½" |
| 8 x 10 | 9 ½ x 12 ¼" | 13 x 15 ¾" |
| 8 x 12 | 9 ½ x 14 ½" | 13 x 18" |
| 8 x 14 | 9 ½ x 16 ¾" | 13 x 20 ¼" |
| 8 x 16 | 9 ½ x 19" | 13 x 22 ½" |
